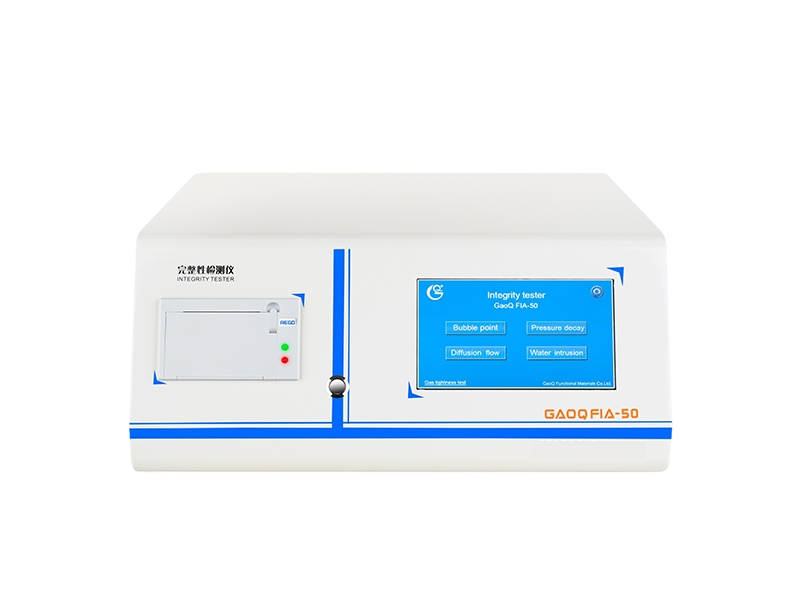

The FIA-50 automatic filter material integrity tester meets the integrity testing requirements of GMP certification, and is suitable for the integrity testing of filter materials and filters of various specifications, and can realize the online detection of filters. Filter integrity can be tested by test items such as bubble point, diffusion flow (forward flow), pressure decay (hold-up), and water immersion. Since the integrity test is carried out only on the infeed side of the filter, the sterility of the outlet side is guaranteed.
Product features:
● Suitable for a wide range of filters
● Automatic testing
● Multiple functions
● Touch screen operation
● Non-destructive testing
● Comply with GMP certification
● Test results can be printed
Key features:
● Bubble point pressure and maximum pore size
● Diffusion flow (forward flow)
●Pressure decay (pressure holding)
● Water Ingress Testing
Scope of application:
● Various materials (ceramics, paper, glass, metals, textiles and composites);

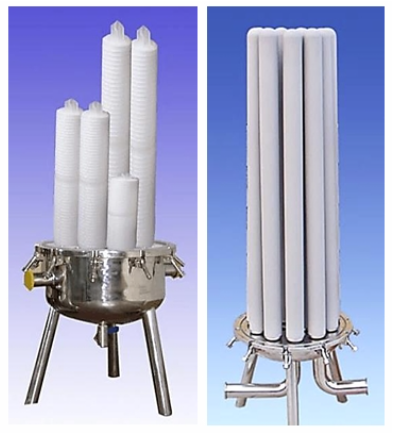

●Various types (flat, tubular, hollow fiber, capsule filter, folded filter, etc.);
● Filter material samples;
● Filters and components;
● Entire filtration system.
Test accuracy
● Bubble point pressure test: ≤0.005 MPa
● Diffusion flow (forward flow) test: ≤5%
●Pressure decay (holding pressure) test: ≤2%
● Water Ingress Test: ≤ 10%

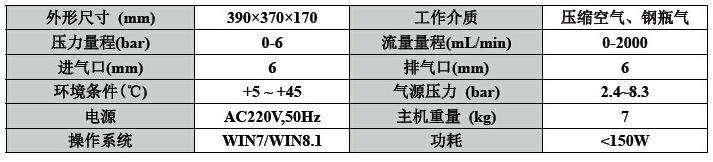

Technical parameters
