Hydrogen Purifier

The hydrogen purification system based on the company's metal palladium membrane has the advantages of small size, simple operation and high purity of hydrogen production, which can effectively intercept any substance other than hydrogen, which not only has a perfect fit with hydrogen energy needs, but also has a wide range of applications in many high-tech industries such as CVD cultivated diamonds, electronic chips, powder metallurgy, MOCVD, chromatography and analysis of carrier gases, photovoltaics, nuclear energy, etc.

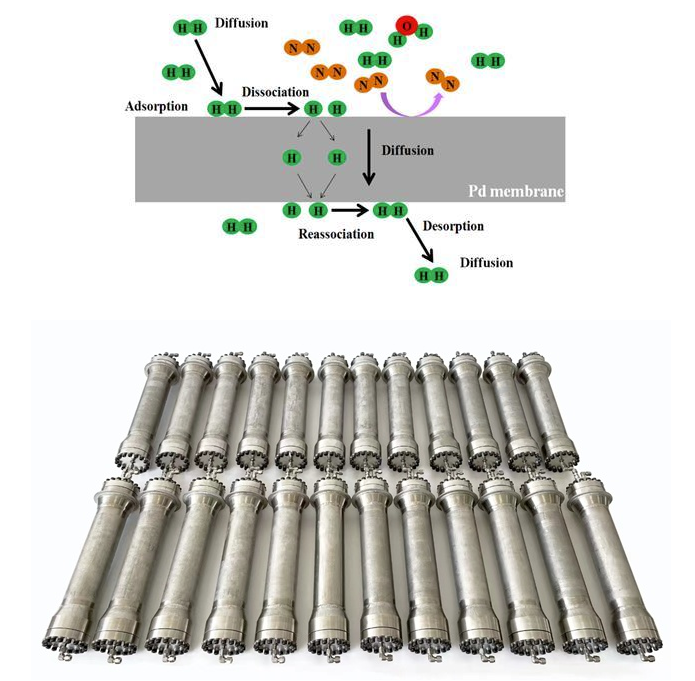

By using the characteristics of only hydrogen atoms that can pass through the palladium lattice, the only selectivity of hydrogen can be achieved, that is, under pressure drive, hydrogen can easily pass through the palladium membrane, and no other gas can pass through, even helium can be effectively intercepted, which is unattainable by other hydrogen purification methods.

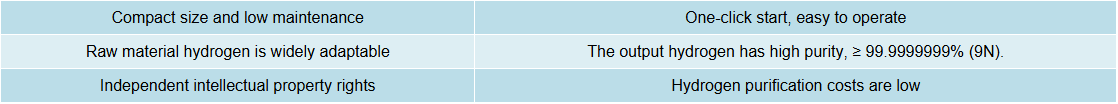

Main Features:

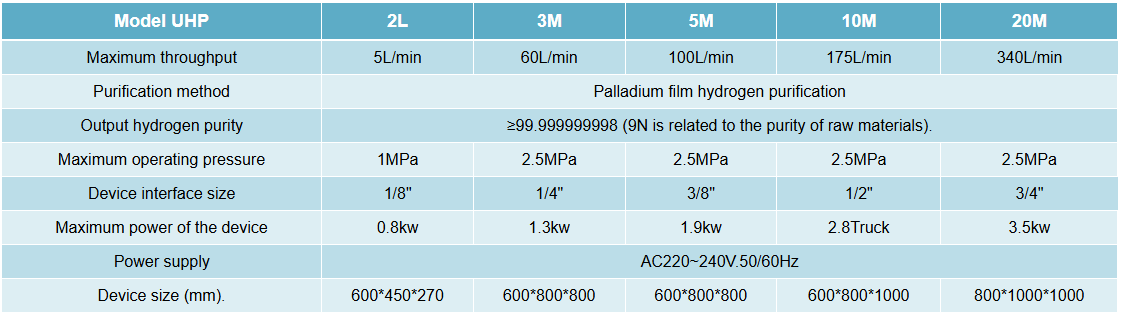

*The above table only lists some product models, which can provide customized services according to on-site process requirements, and the parameters can be adjusted according to the process requirements, not as the basis for acceptance, and the specific technical scheme and agreement shall prevail.

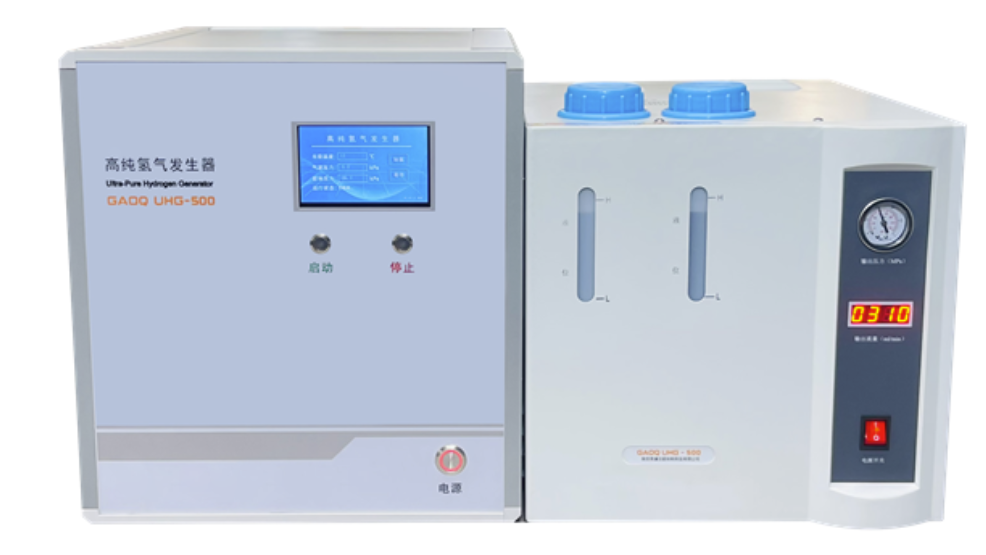

Ultrapure Hydrogen Generator

The ultra-pure hydrogen generator uses a combination of long-life PEM pure water electrolysis and palladium membrane tube purified hydrogen to directly output ultra-high purity hydrogen. The most ideal purification process in the field of hydrogen purification is palladium membrane tube purification to ensure that the absolute purity of the output hydrogen is greater than 99.99999%.

The ultra-pure hydrogen generator adopts fully automatic one-button operation, equipped with water quality online analysis, overpressure protection, hydrogen leakage alarm and other protection modules to ensure that the generator has excellent stability and safety; Optional hydrogen purification online monitoring module can monitor the purity of the output hydrogen in real time.

Main Features:

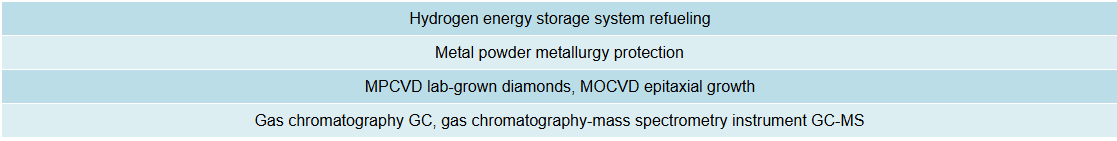

Main Application

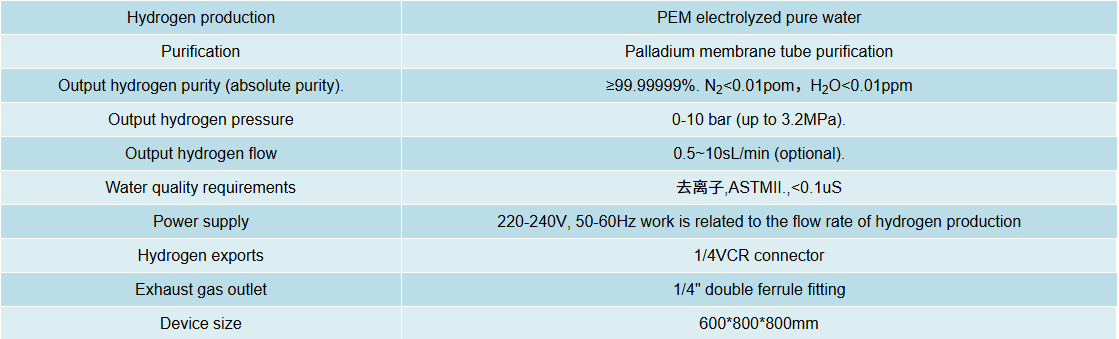

*The above parameters can be adjusted according to the process requirements and are not used as the basis for acceptance, and the specific technical plan and agreement shall prevail.

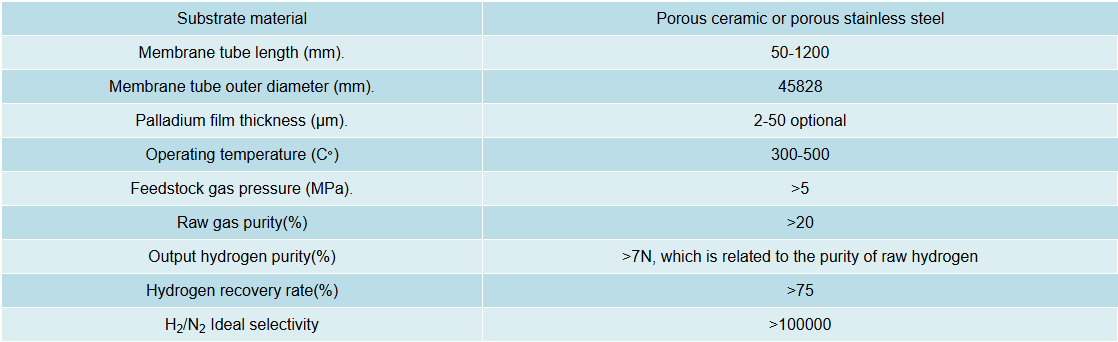

Palladium Membrane

Palladium membrane has good permeability to hydrogen and can trap any gas other than hydrogen, so it can be used in hydrogen separation and purification, hydrogen production, hydrogen recovery and other fields. Compared with conventional rolled palladium films, composite palladium films loaded on porous ceramic or stainless steel substrates are thinner. It has many advantages such as high strength, high penetration, low cost and easy to scale-up.

Palladium film-based hydrogen separators are easy to operate, efficient, and small in size, making them the preferred choice for small-scale hydrogen production systems, especially for semiconductor hydrogen and hydrogen power generation systems (such as methanol reforming + palladium film purification + fuel cell). Palladium membranes have high temperature stability and can also be used as membrane catalytic reactors for oxygen generation, hydrogenation, dehydrogenation and other reactions.

The company has a number of domestic and foreign inventions in key technical fields such as the preparation, packaging and integration of palladium films, as well as the manufacturing of hydrogen purification systems.
